TMA 100K Crash Attenuator Truck Mounted Attenuator
1. Company Introduction:
Founded in 2002, Hefei Huayang Construction Machinery Co., Ltd is located in the cultural and historical city - Hefei, Anhui Province, China. After more than 20 years of development, our company has developed into a full line of special vehicle, road maintenance equipment manufacturer with fully integrated design, products development, manufacturing and distribution capabilities for both domestic and export markets.
We possess our own proprietary intellectual righted "LULAIRUIDE" brand road maintenance equipment, such as road crack sealing machines, asphalt crack router, anti collision truck, truck mounted hedge trimmer, road maintenance truck and etc. We adopt methods of serialization, standardization and modularization during our manufacturing process. Besides, we integrate advanced design concepts with actual needs of the customers. At the meantime, we gather customers′ suggestions and improve our products continuously, to keep standing at the leading edge of this industry′s technology development scope. We continuously stick the rules to provide our customers with professional, timely and considerate after-sales services.
2. Product description:

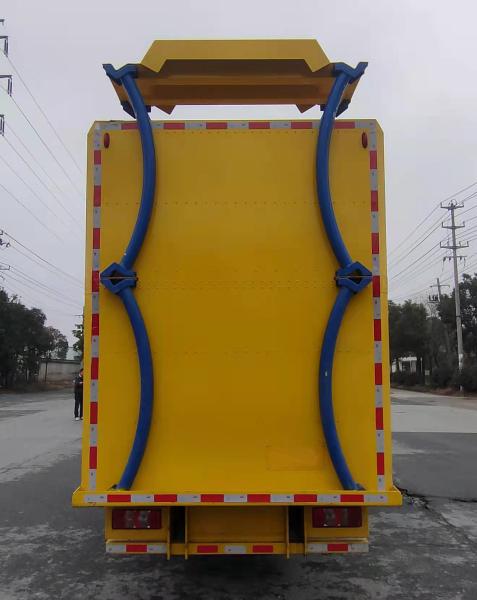

Anti-collision buffer truck is mainly used for highway construction, tunnel construction, and highway construction. It minimizes the safety risks of construction vehicles, maintenance personnel and accident handling traffic police during the maintenance of urban roads and expressways. The anti-collision buffer energy-absorbing module of the anti-collision buffer vehicle is mainly composed of an on-board anti-collision buffer pad and a guide sign frame, which acts as a buffer guard behind the construction work vehicle. In the event of a rear-end collision, a buffer area can be constructed between the vehicle involved in the accident and the construction work area in front of it, and the energy of the impact can be absorbed through the deformation of the machine tool structure to minimize the probability of collisions for the protected personnel and equipment.
3. Parameter:
| NO |
ITME |
SPECIFICATION OF 100K TMA |
| 1 |
Chassis data |
EMISSION STANDARD |
NATIONAL EMISSION Ⅵ |
| Overall dimension L*W*W (mm) |
7900*2400*3930 |
| MASS Weight(kg) |
11995 |
| Wheelbase(mm) |
4200 |
| Curb weight(kg) |
11800 |
| Cabin(Person) |
3 |
| Engine brand |
Adopt national famous brand engine |
| Engine output(kw) |
112 |
| Displacement(ml) |
2951 |
| Max. Speed(km/h) |
110 |
| Fuel type |
diesel |
| 2 |
TMA DATA |
Impact force |
(1.5T-2.2T)-100km/h |
| Buffer cushion length(mm) |
3172 |
| Buffer cushion width(mm) |
2133 |
| Buffer cushion thickness(mm) |
660 |
| ground clearance(mm) |
280 |
