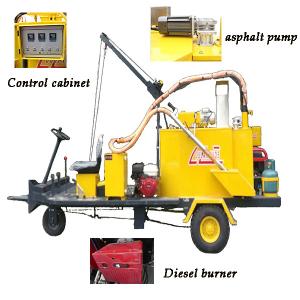

500L Capacity Asphalt Road Repairing Milling Machine Crack Sealing with Factory Prices
1. Product Description:
Asphalt pavement filling machine is suitable for filling joints in highways, municipalities, airports, squares, industrial park asphalt, cement pavement expansion joints, complex pavements, irregular pavements, and filling cracks.
The filling machine adopts a liquefied gas heating system, and the heat transfer oil circulates, so that the asphalt or the filling glue is quickly melted, and the effect of the crack treatment is achieved by the pressure of the asphalt pump being discharged from the discharge port. Through the pressure injection type filling, the material and the seam wall are tightly combined, and the flexible universal wheel is turned to track the crack, so that the filling effect is beautiful.
2. Product Parameter:
1) Net Weight: 2400kg
2) Size: 3980mm*1980mm*1830mm (L*W*H)
3) Material Melting Speed: About 40 mins
4) Hot melt kettle volume: 500L
5) Heat transfer oil / conduction oil: 120L
6) Engine: Yanmar 3TNV diesel engine
7) Engine Power: 25hp
8) Fuel Tank: 90L
9) Hydraulic fuel tank capacity: 90L
10) Burner: Imported Diesel Burner
11) Burning Power: 100000 kcal
12) Temperature control: monitoring the temperature of thermal oil filling, sealing materials and electric heating tube, the computer automatic control (when reaching the construction temperature, it would automatically conduct heat preservation procedure)
13) Temperature control scope: 0~299ºC
14) Insulating System: 220 V mains supply insulation for optional choice, do not need to start the device (optional choice)
15) Feeding mechanism: the integration of discharging control switch; Infinite speed control; Equipped with a leak-proof switch
16) Feeding hose: The electric heating tube is 6M in length, can rotate 360°, with technology in spout incubator, avoid blocking pipe problem caused by low temperature
17) Discharging flow: 0 - 60L; the infinite speed regulation control
18) Hydraulic lifting device: Lifting the slotting machine and hot air spraying gun onto the supporting plate, thus reducing labor intensity
19) Moving Method: Hydraulic rear wheel driving during the whole process; self-propelling or hand-push type as you like
20) Vehicle suspension: leverage spring compression type of shock absorber
21) TractionSpeed: 60km/h
22) Self-propelling Speed: 10km/h; the infinite speed regulation control
Hydraulic tools interface for optional choice, can be connected to any kind of hydraulic tools (hydraulic crushing picks, hydraulic cutting saw, hydraulic pump. etc)(optional choice)
3. Product Application:
It’s used with router, vacuum cleaner or hot air lance. It applies to the residential, municipal, highway, freeway, airport and other pavement.
4. Features and benefits:
1. Concrete,Asphalt and Cement Road Crack Sealing Machine
2. Independent research and development in hydraulic drive technology, low emissions, low energy consumption, energy saving and environmental protection.
3. Advanced intelligent ignition, detection of temperature control technology
4. The unique design of oil casing hot melt
5. Unique thermal cycle heating system design
6. Efficient design of discharge system
7. The machine safety low center of gravity design
5. Construction Principle and Process:
1. The cracks have been eroded by rainwater for a long time, which makes the road damage more serious.
2. Using pavement router to open 1~2 cm standard incision to ensure the effect of filling.
3. Use jointing equipment to better fill the sealant to the cracks.
4. 3-5 years after crack repair can effectively prevent rainwater erosion.
6. Company Introduction:
Founded in 2002, Hefei Huayang Construction Machinery Co., Ltd is located in the cultural and historical city - Hefei, Anhui Province, China. After more than 20 years of development, our company has developed into a full line of equipment manufacturer with fully integrated design, products development, manufacturing and distribution capabilities for both domestic and export markets.
We possess our own proprietary intellectual righted "LULAIRUIDE" road maintenance equipments. We adopt methods of serialization, standardization and modularization during our manufacturing process. Besides, we integrate advanced design concepts with actual needs of the customers. At the meantime, we gather customers' suggestions and improve our products continuously, to keep standing at the leading edge of this industry's technology development scope. We continuously stick the rules to provide our customers with professional, timely and considerate after-sales services. We welcome customer both at home and abroad to contact with us to make mutual benefit and get win-win cooperation. To create profit to our dear customer and let us grow stronger hand in hand.
7. FAQ:
1. Q: Are you trading company or manufacturer?
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
It's not free. Customers should charge the freight cost of express or delivery .
4. Q: What is your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal, etc.
Deposit percent can be negotiate relying on your amount .
8. Our Services:
Before sales: Engineering Consultance Service & Technical Support
After sales: Process clients' feedback and or problems during the operation of the equipments/machines within 24 hours
OEM service: We accept OEM orders and 80% of our clients are enjoying OEM services.
