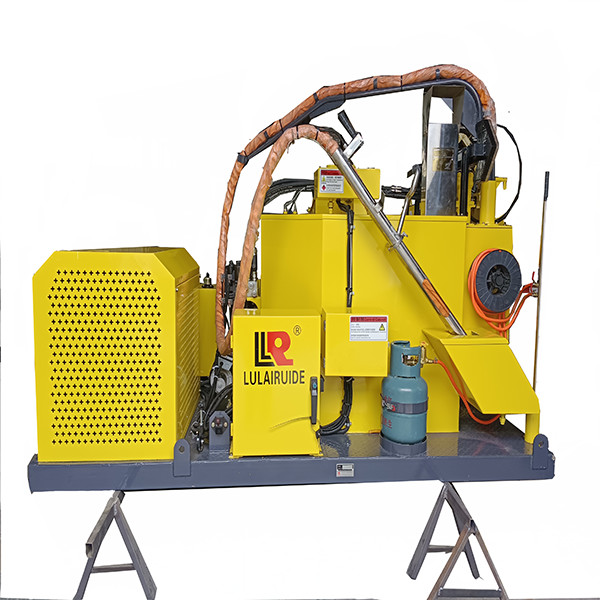

Strong Power High Combustion Efficiency Concrete Crack Sealing Machine
1. Product Application:
It can be used for highway pavement maintenance in highway maintenance operations, and is used for the filling of irregular cracks, expansion joints, working joints, and transverse and longitudinal cracks on asphalt and cement pavements. The main purpose is to prevent the damage of the roadbed base layer caused by the penetration of road water into the roadbed after the road surface is cracked, and it can also control the continued expansion and increase of road cracks caused by vehicle load or temperature shrinkage stress.
2. Device Parameter:
1) Net Weight: 2400kg
2) Size: 3980mm*1980mm*1830mm (L*W*H)
3) Material Melting Speed: About 40 mins
4) Hot melt kettle volume: 500L
5) Heat transfer oil / conduction oil: 120L
6) Engine: Yanmar 3TNV diesel engine
7) Engine Power: 25hp
8) Fuel Tank: 90L
9) Hydraulic fuel tank capacity: 90L
10) Burner: Imported Diesel Burner
11) Burning Power: 100000 kcal
12) Temperature control: monitoring the temperature of thermal oil filling, sealing materials and electric heating tube, the computer automatic control (when reaching the construction temperature, it would automatically conduct heat preservation procedure)
13) Temperature control scope: 0~299ºC
14) Insulating System: 220 V mains supply insulation for optional choice, do not need to start the device (optional choice)
15) Feeding mechanism: the integration of discharging control switch; Infinite speed control; Equipped with a leak-proof switch
16) Feeding hose: The electric heating tube is 6M in length, can rotate 360°, with technology in spout incubator, avoid blocking pipe problem caused by low temperature
17) Discharging flow: 0 - 60L; the infinite speed regulation control
18) Hydraulic lifting device: Lifting the slotting machine and hot air spraying gun onto the supporting plate, thus reducing labor intensity
19) Moving Method: Hydraulic rear wheel driving during the whole process; self-propelling or hand-push type as you like
20) Vehicle suspension: leverage spring compression type of shock absorber
21) TractionSpeed: 60km/h
22) Self-propelling Speed: 10km/h; the infinite speed regulation control
Hydraulic tools interface for optional choice, can be connected to any kind of hydraulic tools (hydraulic crushing picks, hydraulic cutting saw, hydraulic pump. etc)(optional choice)
3. FAQ:
1. Q: Are you trading company or manufacturer?
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
It's not free. Customers should charge the freight cost of express or delivery .
4. Q: What is your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal, etc.
Deposit percent can be negotiate relying on your amount .
